We've chosen these reliable products from these top manufacturers to develop classrooms with the most appropriate delivery of curriculum

so that students will have a meaningful learning experience as they focus on the applications of science and technology .

.

VAL*TEC offers the most complete line of Programmable Logic Controls Training Systems.  If you don't see it here, we'll make it for you.

Please scroll down and click on a subject below for detailed information.

User Reference:  Iowa State University, Ames, Iowa

Digiac - LJ Create

Hampden Engineering

Programmable Controllers

This teaching set provides an affordable complete introductory course in the programming and troubleshooting of industrial control applications. Typical topic areas include:

bullet

Introduction to PLCs

bullet

ladder logic programming

bullet

latches

bullet

counters

bullet

timers

bullet

shift registers

bullet

sequencers

The teaching set includes an industrially relevant applications trainer, an industry-standard SLC 500 programmable controller, RS Logix Ladder Logic programming software, a sequence switch module, a compressed air pump and a curriculum manual.

When used in conjunction with a student personal computer (PC), the curriculum manual is fully compatible with the ClassAct computer managed learning system. The curriculum manual is divided into a series of chapters. Each covers a specific topic area and provides background theory, practical activities and student assessment questions. Each chapter is designed around a list of performance objectives. These objectives are used by the ClassAct management system to generate a student competency report. An instructor's manual is also included, providing solutions to all of the questions and practical activities contained in the curriculum

Advanced Programmable Controllers

This sophisticated teaching set introduces students to programmable controllers through a range of practical activities that are based on an advanced pneumatic/electronic applications trainer. Typical topic areas include: Ladder logic programming, latches, counters, timers, shift instructions, sequencers, and troubleshooting a complex control sequence. The set includes the applications trainer, an industry-standard Petra programmable controller, a compressed air pump and a curriculum manual. When used in conjunction with a student personal computer (PC), the curriculum manual is fully compatible with the ClassAct computer managed learning system. The curriculum manual is divided into a series of chapters. Each covers a specific topic area and provides background theory, practical activities and student assessment questions. Each chapter is designed around a list of performance objectives. These objectives are used by the ClassAct management system to generate a student competency report. A student workbook is also provided, allowing students to record basic theory and practical results as they work through the curriculum manual. Finally, the teaching set includes an instructor's guide. This provides solutions to all of the questions and practical activities contained in the curriculum manual.



Our most extensive PLC line is from Hampden Engineering Corporation.  Choose from SLC-500 PLCs, CompactLogix Programmable Automation Controllers, the MicroLogix 1100 System, Allen Bradley PLC-5, external interfaces, and RS Logix Ladder Logic Programming software or the View 32 Visual Graphics Development System, workbooks and study guides. Typical topic areas include:

  • Introduction to PLCs

  • PLC Hardware Components

  • Number Systems & Codes

  • Fundamental of Logic

  • Basics of PLC Programming

  • Developing Fundamental PLC Wiring Diagrams & Ladder Programs

  • Programming Timers

  • Programming Counters

  • Program Control Instructions

  • Data Manipulation Instructions

  • Math Instructions

H-PLC-500-FT - Programmable Logic Controller with Faults

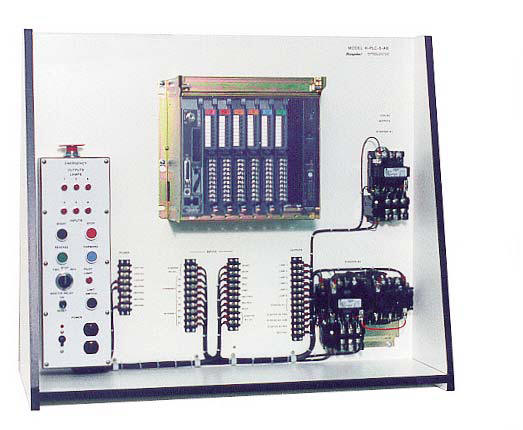

H-PLC-5-AB - Programmable Logic Control Trainer

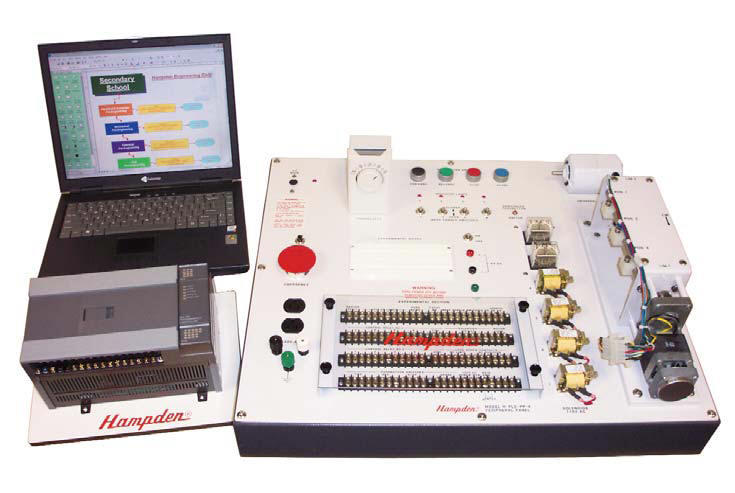

H-PLC-PP-500 - Programmable Logic Controls Training System
H-PLC-SEI - Simulator External Interface Module
H-PLC-SEI-500 - Simulator External Interface Module
H-PLC-PPA - Peripheral Panel

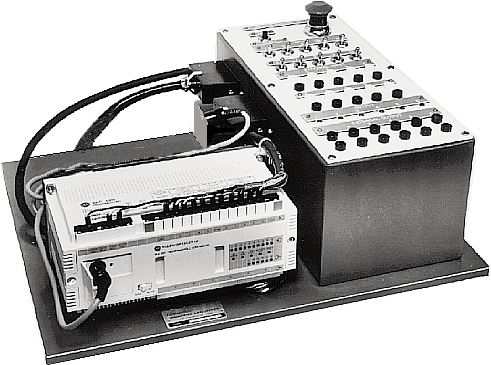

H-SLC Series - Programmable Logic Controllers
H-PLC-PP - Peripheral Panel
